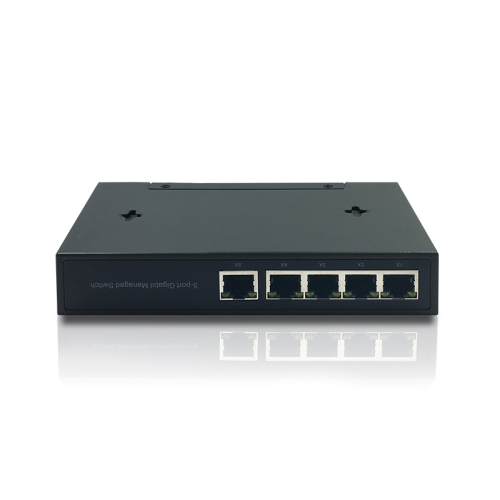

5-Port 10/100/1000BASE-T Gigabit Web Managed Ethernet Switch

Item No.: 00166
5-Port 10/100/1000BASE-T  Web Managed Ethernet Switch
. 5*10/100/1000Base-T RJ45 Port
. Support VLAN/ IGMP / Port Mirroring
. Support Loop Prevention
Description Specification
Description

5-Port 10/100/1000BASE-T Gigabit Web Managed Ethernet Switch

MODEL:ES1000-5GM- Plus


 Energy-saving and Gigabit High-performance Networking Solution





      GXCOM Gigabit Easy Smart switch,  offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, Smart switch can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, Smart switch supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. Smart switch is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.





Key Features:

· 5-10/100/1000Mbps ports provide instant large file transfers·

· Support portbased QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions
· Support IEEE 802.1p Qos ,TOS/DSCP Qos
· Support port trunking/aggregation
· Support rate control, broadcast storm suppression
· Support port flow control
· Support port mirror
· Support IGMP Snooping V1/V2, MLD snooping
· Support IEEE802.1X based port security
· Support loop detection, loop prevention
· Support Dos attack prevention
· Support configure port speed, status
· Support SNMP,web GUI, CLI management
· Support mac list,mac search




Saving Power  & Robust Protection
  The ES1000-5GM-Plus protects against the ESD 4KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



   Plug & Play
    All RJ45 copper interfaces of the ES1000-5GM-Plus support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.









Specification
HARDWARE FEATURES

Model ES1000-5GM-plus ES1000-8GM-Plus
Interface 5*10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

8 *10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fan Quantity
Power Supply External Power Adapter External Power Adapter
Power Consumption Maximum: 4.48W (220V/50Hz)
Dimensions ( W x D x H ) 160*95*22 mm 160*95*22 mm

PERFORMANCE
Switching Capacity
Packet Forwarding Rate
10Gbps
11.9Mpps
16Gbps
11.9Mpps
MAC Address Table 4K 4K
Packet Buffer Memory 1.5Mb 1.5Mb
Jumbo Frame 15KB 15KB

SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping
Supports 128 Groups
Supports static link aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward

OTHERS
PACKAGE Switch
Power Adapter / Power Cord
Installation Guide
Warranty Card
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
