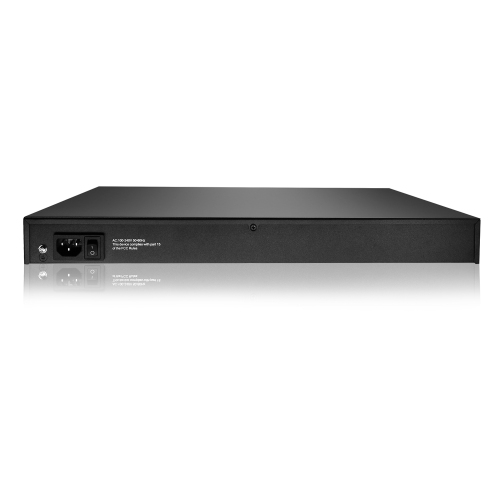

24V 24-Port Gigabit Non-standard PoE Switch

Item No.: 00129
* 24V 24-Port Gigabit  PoE Switch
* 24*10/100/1000M PoE Port
* Port 1-24 can support 24V non-standard PoE power supply

Model:TS8124P-2F
Description Specification
Description


24V 24-Port Gigabit Non-standard PoE Switch

MODEL: TS8124P-2F



Introduction

   TS8100 series is a non-standard PoE switch independently developed by GXCOM. It has 24* 10/100/1000M RJ45 ports . Port 1-24 can support 24V non-standard PoE power supply, single-port PoE power up to 15.4W. total power is 400W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.


FEATURE

Provides 24*10/100M/1000M RJ45 ports with 2*10/100/1000M SFP slots, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
All ports support non-blocking wire-speed forwarding for smoother transmission.
Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.


 PoE power supply function
24*10/100/1000Base-TX RJ45 ports support 24V PoE power supply, which meets the needs of PoE power supply in various scenarios in the security field.

The maximum PoE output power is 400W, and the maximum PoE output power of single port is 30W.

It can quickly realize the power supply function of POE cable through the two ways of switching directly to non standard electrical equipment or switch + non standard separation line.
Specification




Model TS8124P
Product 24-Port Full Gigabit Non-standard PoE Switch
Fixed Port 24*10/100/1000Base-TX  PoE portData/Power
PoE Ports 1-24 port supports PoE
POE power pin 45+,78-
POE output voltage 24V
RJ45 Port 1-24   10M/100/1000M
SFP 25-26  10M/100/1000M
Network Protocol IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.1q
Port Specification 10/100/1000BaseTXAuto
Transmission Mode Store and Forward(full wirespeed)
Bandwidth 52Gbps
Packet Forwarding 40.32Mpps
MAC Address 8K
Buffer 4.1M
Total power/Input voltage MAX 400W AC100-240V 50/60HZ
Watt Standby Power Consumption≤20W
LED Indicator PWR:Power LED
1~24:(Link LED=10/100M Link1000M=Gigabit Link)
Power Input Built-in power AC100240V 50-60Hz 1A
Operating Temperature/Humidity -10+55°C5%90% RH Non coagulation
Storage Temperature/Humidity -40+75°C5%95% RH Non coagulation
Product size/Packing
sizeL*W*H
440mm*290mm*45mm
515mm*375mm*95mm
N.W/G.Wkg 4.5kg/5.0kg
Installation Rack-mount(optional machine hanger spare parts)
Certificate CE mark, commercialCE/LVD EN60950
FCC Part 15 Class BRoHS
Warranty Whole device for 1 year
